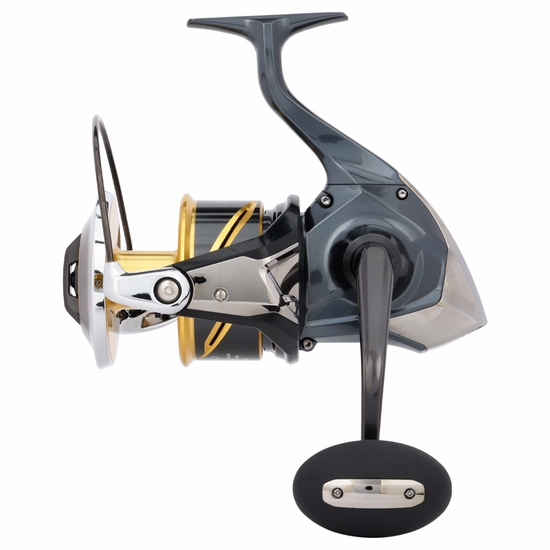

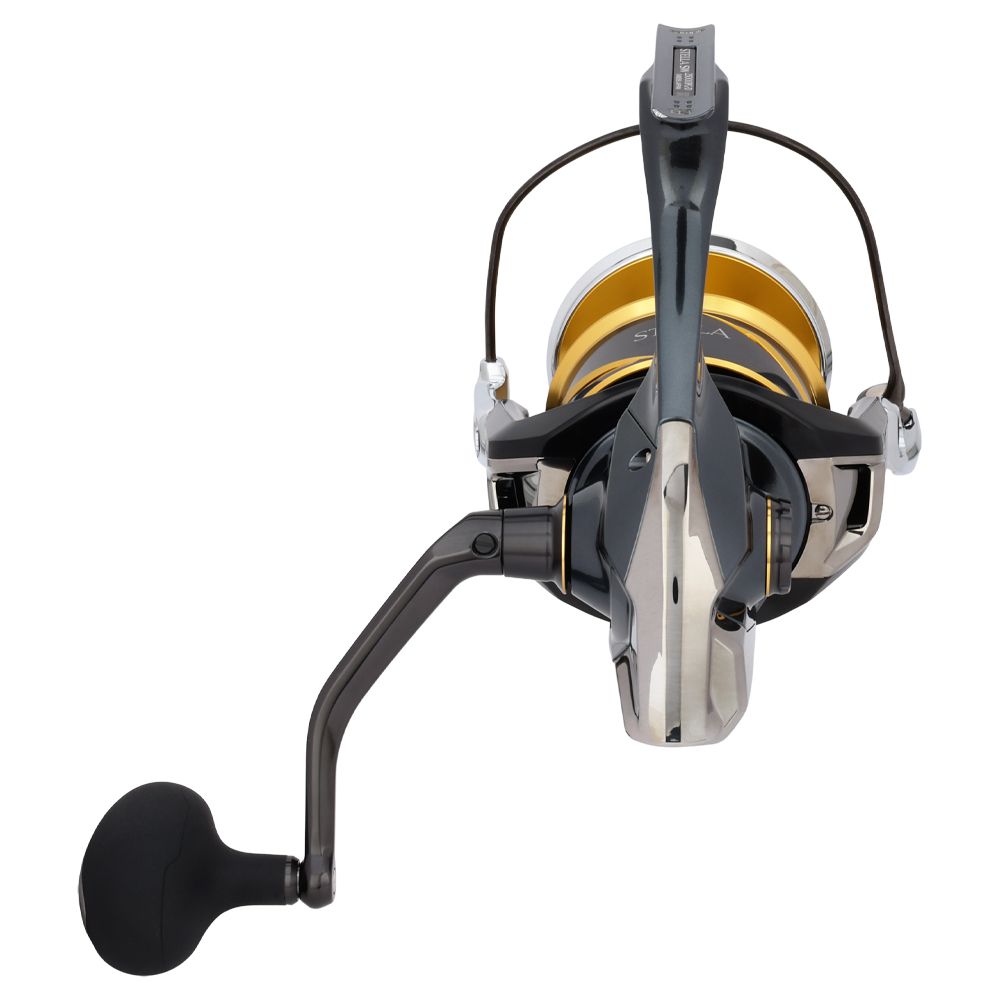

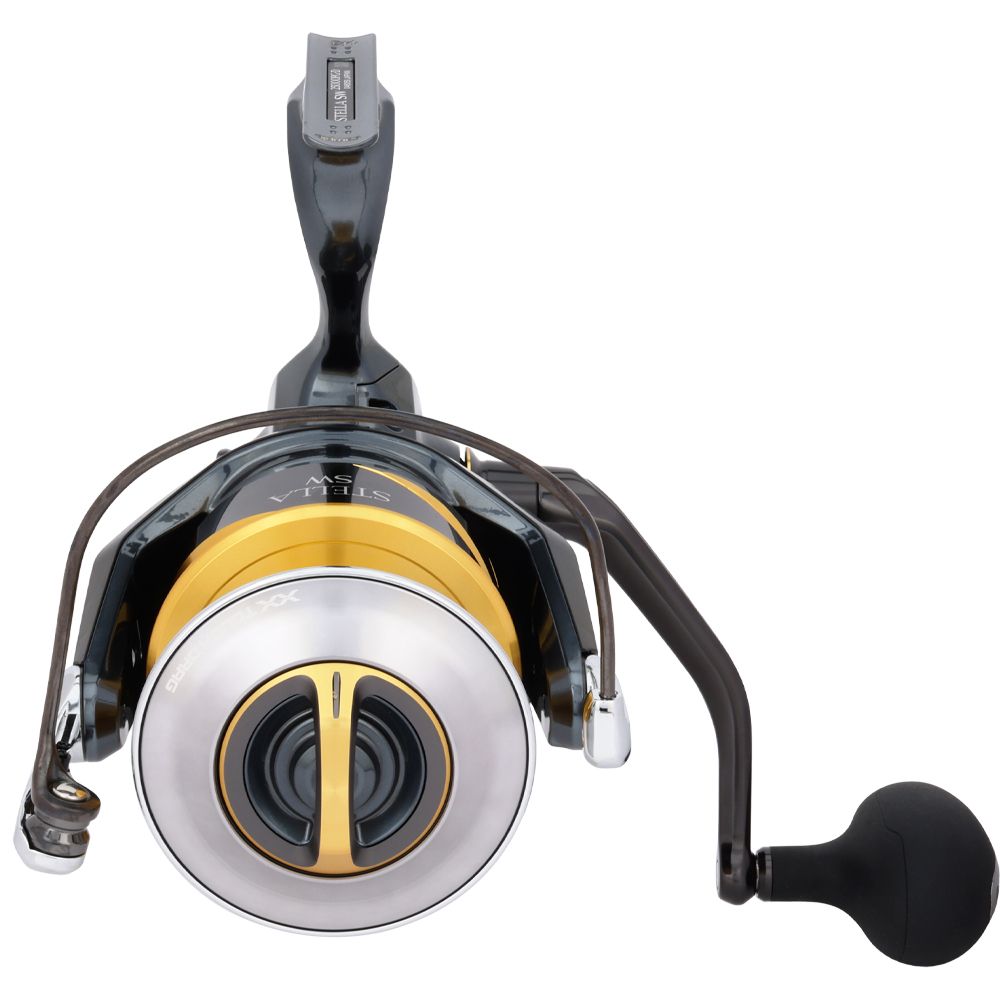

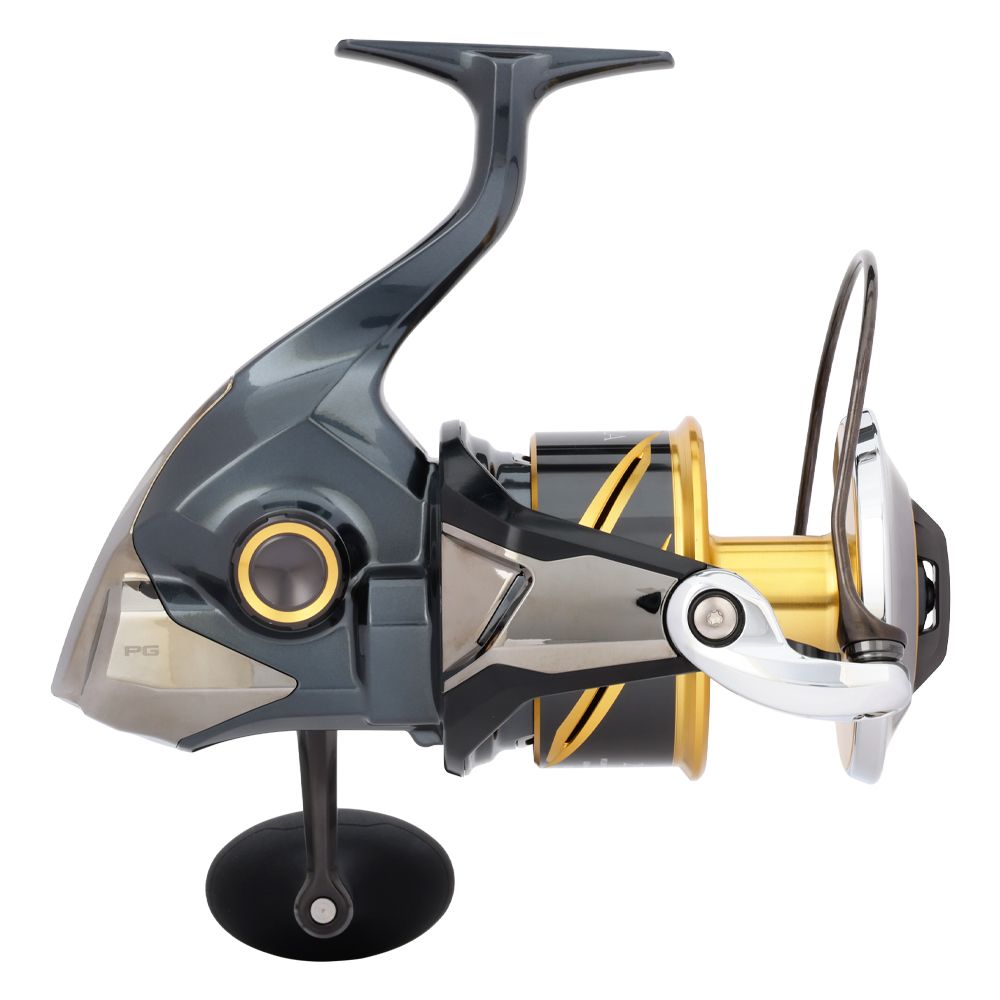

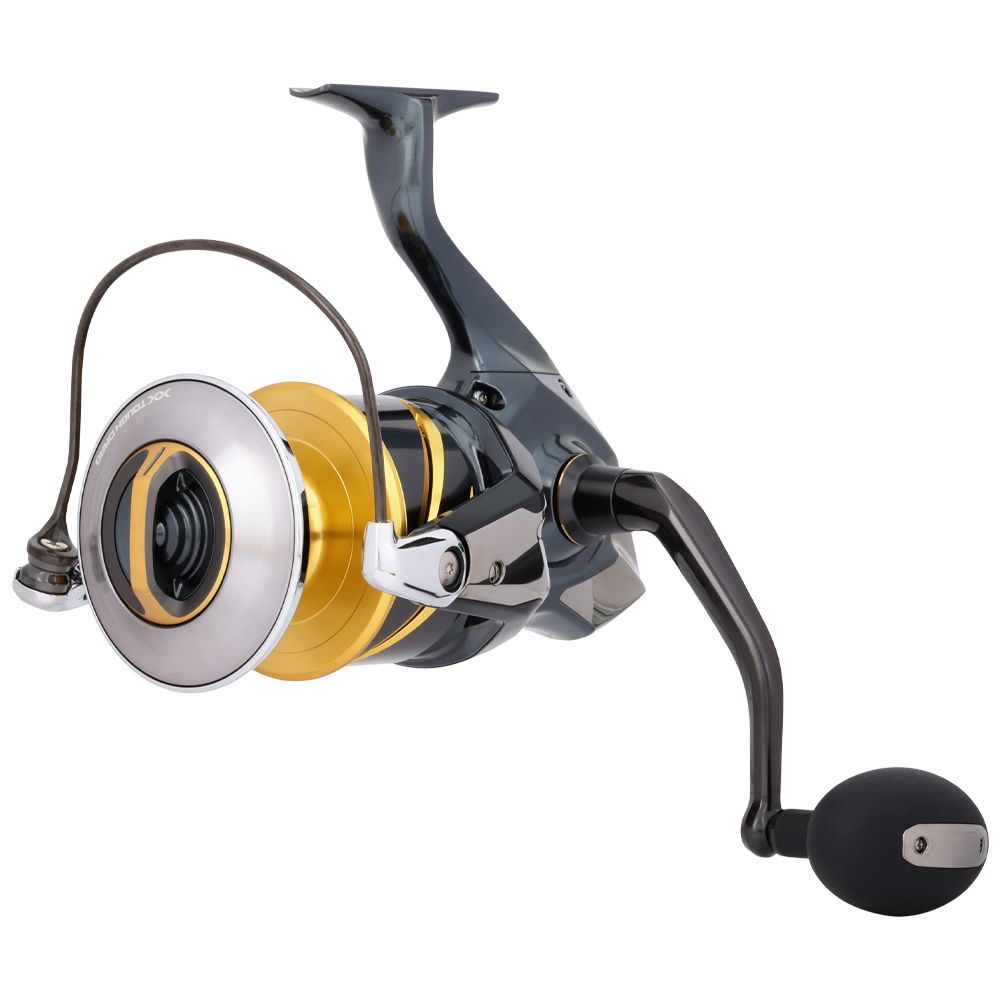

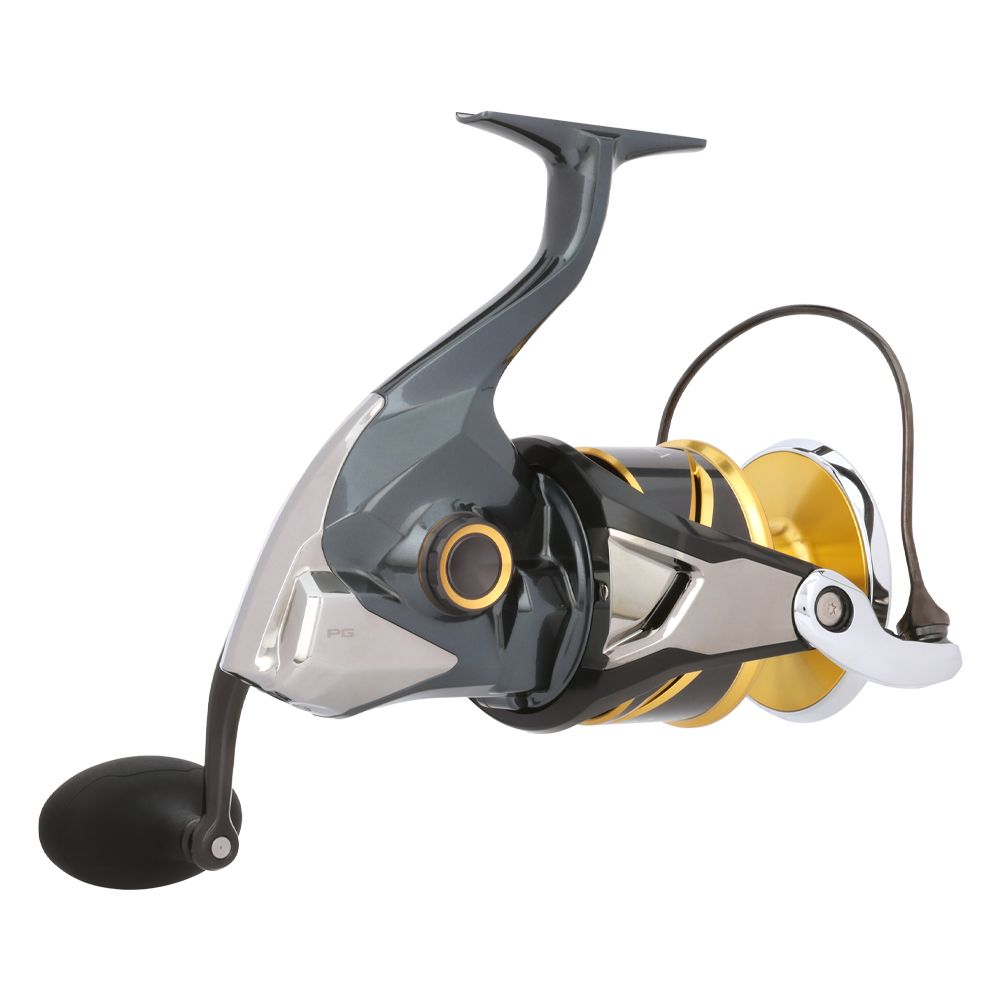

Shimano Stella SW D STLSW25000PGD Spinning Reel
$1,449.99
Available in the traditional sizes, Stella SW D has added an XG gear ratio to the 6000 size as well as an all-new 25000 size. Stella SW D features a HAGANE Body, for high rigidity and durability. At the heart of the reel is InfinityXross gears, featuring a state-of-the-art tooth design for superior load distribution across the teeth without compromising Stella's smooth reeling. Infinity Drive uses a low-friction bushing and proprietary surface treatment to reduce friction, enabling powerful reeling even under the heaviest of loads. Silent Drive further improves smoothness and eliminates vibration by decreasing tolerances between the worm shaft and drive gear. In sizes 14000 and higher, XX Tough Drag is now coupled with Heatsink Drag. This significantly improves performance and durability by transferring heat away from the spool, reducing spool surface temperature by up to 30%. X-Protect and X-Shield ensure your investment is guarded from the harsh elements of a saltwater environment. 2026 Stella SW D is now lighter, more powerful, and more reliable than ever before. Conquer the impossible.
Ask a Question
Share
- Models Attributes
- Product Specs
- Q&As
- Recently Viewed
- Reviews
Other Models in This Series
| Model | Gear Ratio | Max Drag (Ib) | Mono Line Capacity (Ib/yds) | Braid Line Capacity (Ib/yds) | Line Per Crank (in) | Bearings | Reel Weight (oz) | Price | Qty |
|---|---|---|---|---|---|---|---|---|---|
| STLSW4000XGD | 6.2:1 | 24 | 10/200, 12/160 | 15/230, 30/180, 40/140 | 40 | 11+1 | 12.7 | $1,049.99 | |
| STLSW5000HGD | 5.7:1 | 29 | 10/240, 12/195, 14/165 | 20/245, 30/225, 40/175 | 38 | 12+1 | 15.0 | $1,099.99 | |
| STLSW6000HGD | 5.7:1 | 29 | 12/265, 16/170, 20/120 | 30/290, 40/230, 50/195 | 41 | 12+1 | 15.5 | $1,099.99 | |
| STLSW6000XGD | 6.2:1 | 29 | 12/265, 16/170, 20/120 | 30/290, 40/230, 50/195 | 45 | 12+1 | 15.3 | $1,099.99 | |
| STLSW8000HGD | 5.6:1 | 55 | - | 40/340, 50/265, 65/215 | 36 | 12+1 | 22.2 | $1,169.99 | |
| STLSW10000PGD | 4.8:1 | 55 | 16/320, 20/220, 25/175 | 50/360, 65/290, 80/215 | 39 | 12+1 | 24.0 | $1,199.99 | |
| STLSW14000XGD | 6.2:1 | 55 | 16/360, 20/260, 25/190 | 50/400, 65/315, 80/240 | 53 | 12+1 | 24.2 | $1,199.99 | |
| STLSW18000HGD | 5.7:1 | 66 | 20/415, 25/340, 30/280 | 50/600, 65/440, 80/360 | 50 | 13+1 | 31.7 | $1,429.99 | |
| STLSW20000PGD | 4.4:1 | 66 | 20/460, 25/380, 30/320 | 65/490, 80/400, 100/340 | 41 | 13+1 | 32.3 | $1,449.99 | |
| You Are Currently ViewingSTLSW25000PGD | 4.4:1 | 66 | 25/490, 30/360, 40/285 | 65/630, 80/520, 100/440 | 43 | 13+1 | 32.4 | $1,449.99 | |
| STLSW30000PGD | 4.4:1 | 60 | 40/370, 50/300, 60/250 | 65/900, 80/700, 100/570 | 51 | 13+1 | 35.1 | $1,549.99 |
Show 6 More Models
Specs
- XX Tough Drag: Shimano's innovative XX Tough Drag technology modifies the reel's drag construction by moving the upper drag washer to the top of the spool and significantly increasing the drag washer size. Utilized on 10000-size reels and above, XX Tough Drag offers enhanced durability, improved heat dissipation, consistent drag operation, and increased drag adjustment range.
- InfinityLoop: Offers an asymmetrical oscillation pattern where the downstroke of the spool is slow and the upstroke is fast. This drastically improves line lay on the spool, resulting in a tight and organized configuration, resulting in longer casts, smoother drag performance, and efficient line retrieval.
- InfinityXross: The Main gear width has increased by 1.5 times. Wider gear teeth now enable better distribution of heavy loads between the main and pinion gears.
- Anti-Twist Fin: A flexible polymer fin installed near the line roller to maintain line tension in slack-line situations. This reduces sagging and prevents the line from falling off the bottom of the spool or wrapping around the spool in an uneven manner.
- Infinity Drive: An advanced structure that creates exceptionally light winding. The main shaft is supported by a unique low-friction bushing that significantly decreases frictional resistance. In addition, the main shaft has undergone proprietary surface treatment and special processing to drastically reduce rotational torque, constructing a reel that can actively wind even under heavy loads.
